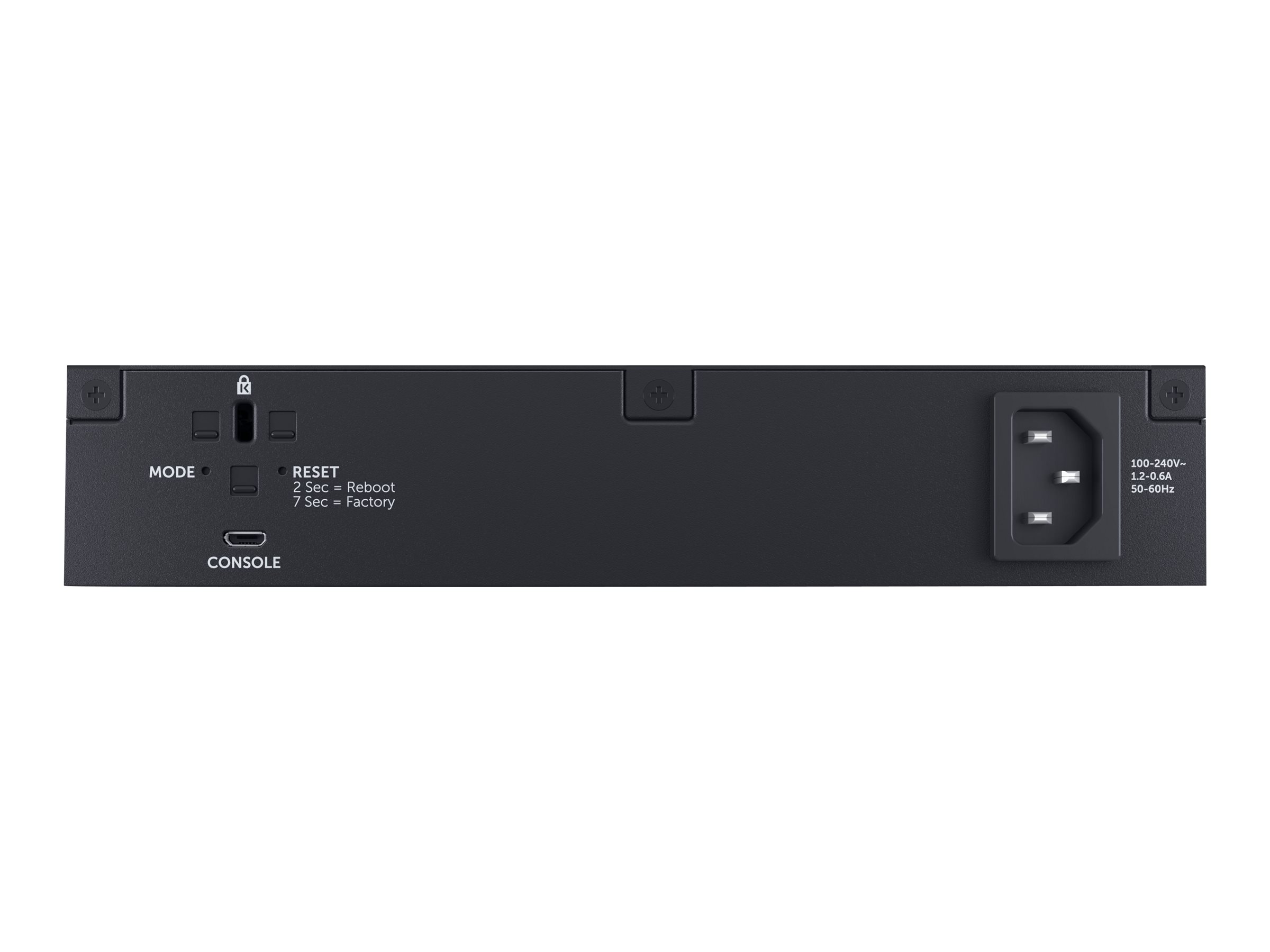

Dell Networking X1018 Smart Web Managed Switch/ 16x 1GbE and 2x 1GbE SFP ports Lifetime Limited Hardware Warranty Minimum Warranty ( add 575 BBEE to make the switch rackmountable ) SKU: 210-AEIK

Device Type

Switch – 16 ports – L2+ – Managed

Enclosure Type

Subtype

Gigabit Ethernet

Ports

16 x 10/100/1000 + 2 x Gigabit SFP

Performance

Switching fabric bandwidth: 36 Gbps,Forwarding performance: 26.8 Mpps

Capacity

MAC addresses: 16000,LAG groups: 12,Priority queues per port: 4,Virtual interfaces (VLANs): 4096,Maximum member ports per LAG: 8

MAC Address Table Size

16K entries

Remote Management Protocol

SNMP 1, SNMP 2, RMON, SNMP 3, HTTP, CLI

Authentication Method

RADIUS, TACACS+

Features

Auto-negotiation, VLAN support, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) technology, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Uni-Directional Link Detection (UDLD), DNS server, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), SNMP trap, static routing, GARP VLAN Registration Protocol (GVRP), SNMP support, ARP inspection, Head of Line Blocking Prevention, Back Pressure Support, Proprietary Protocol Filtering

Compliant Standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP)

Interfaces

16 x 1000Base-T,2 x Gigabit LAN SFP,1 x USB Type A management,1 x micro-USB output management

Power Device

Internal power supply

Power Provided

40 Watt

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

21.5 Watt

Width

20.9 cm

Depth

25 cm

Height

41.25 cm

Service & Support

Limited warranty – lifetime

Min Operating Temperature

0 °C

Max Operating Temperature

45 °C

Humidity Range Operating

10 – 90% (non-condensing)

Min Storage Temperature

-20 °C

Max Storage Temperature

70 °C
